We have proud for delivering quality casting. We are equipped with high pressure molding line.

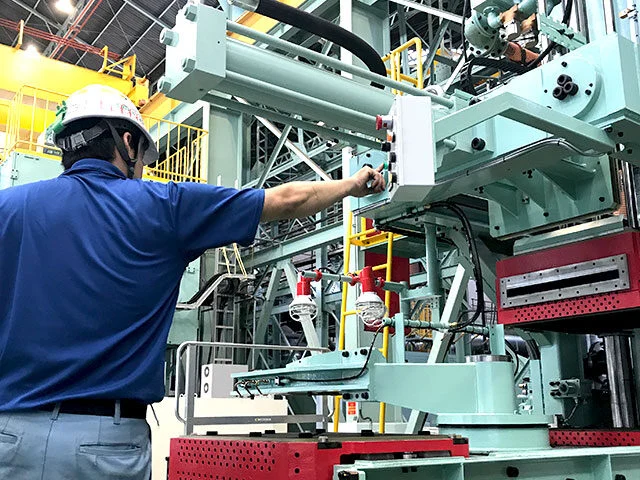

High Pressure Automatic Moulding Machine

We are totally committed to understanding and Meeting the quality needs and expectations of all our customers. We have proud reputation for delivering quality casting. We are equipped with high pressure molding line as well as highly lab testing facilities.

Specification

Molding Dimension : 610 X 508 X 130-200/130-200
Molding Speed : 30 Sec./Cycle
Core Setting Time : 24 Sec.
Bunch Weight : Max 50 Kg.
Mold Production : 120 Mold/Hr.

Fully Automatic SAND Plant

Sand Plant Capacity: 30/MT Hour
Sand Cooler Capacity: 30MT/Hour
Sand Mixer Capacity: 0.50 MT/Cycle

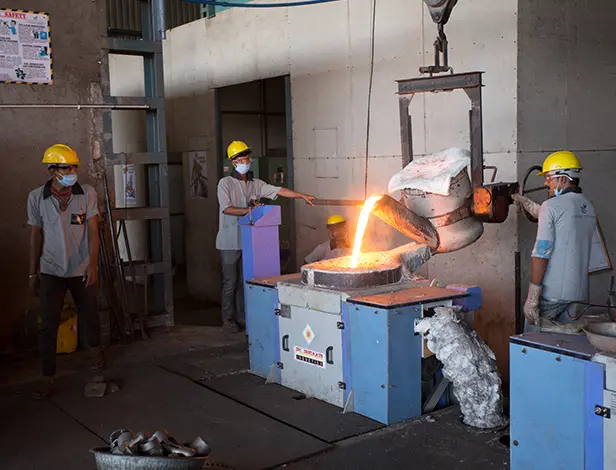

Melting Shop For HPML Line

500 KG. – 550KW – 2 NOS
300 KG. – 350KW – 2 NOS
Melting Capacity: 50 MT/Day
Auto Pour – 500 kg./Batch
2 Digital Temperature Contact type Pyrometers.
1 Digital Temperature Contact less Pyrometer.
4 Digital Platforms Weighing Balance of 500 kg.
4 Wireless Digital Weighing Balance of 5 MT.
6 SG Iron Treatment Ladles of 500 kg.
6 Pouring Ladles of 500 kg each.
3 Overhead Cranes of 5 MT each.

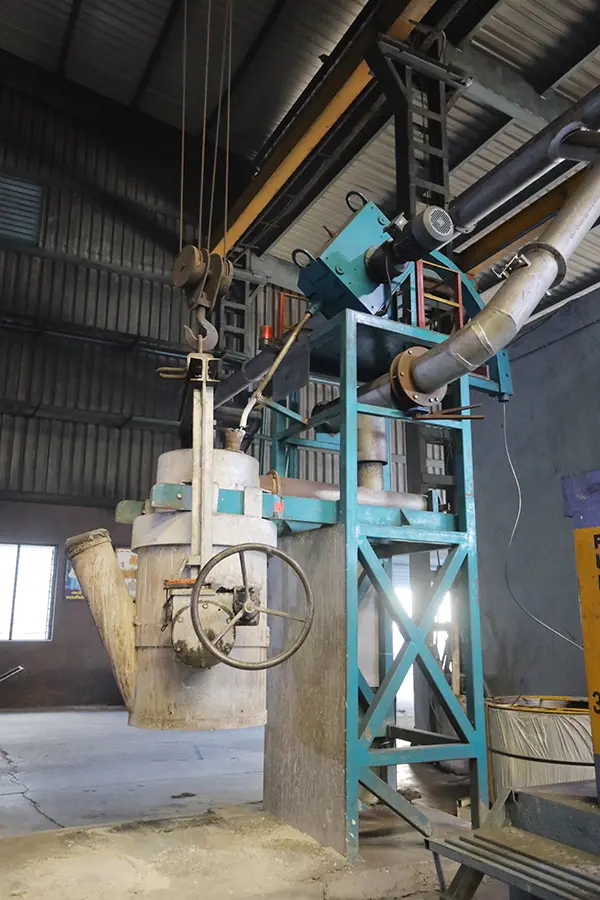

Magnesium treatment by MG Cored-Wire Injection method.
Cored wire Magnesium Treatment.

Auto MG Cored Wire Feeder System

Capacity – 500 Kg / Batch.
Mg treatment controlled automatic with base metal Sulfur %, metal weight and metal temperature.

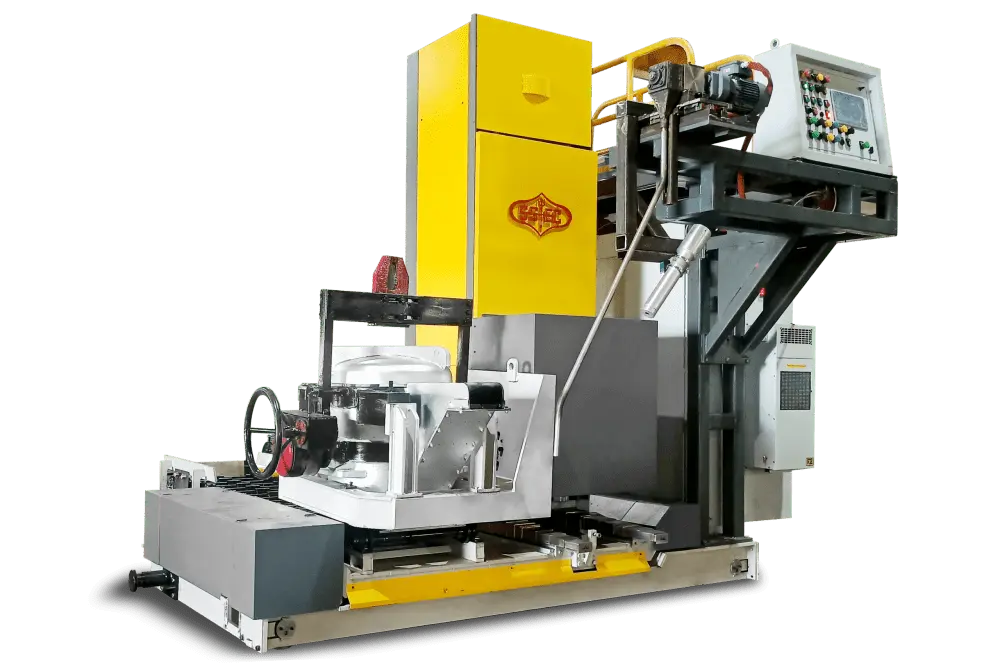

Auto Pouring System

Auto Pouring capacity – 500 Kg/Batch (Every 15 Min).
Auto Mould Inoculation system.
In Built with Infrared Pyrometer (Controls pouring with minimum and maximum Temperature range of metal).
In Built Mg fading time control system.
In Built HMI to monitor pouring time and pouring temperature per mould.

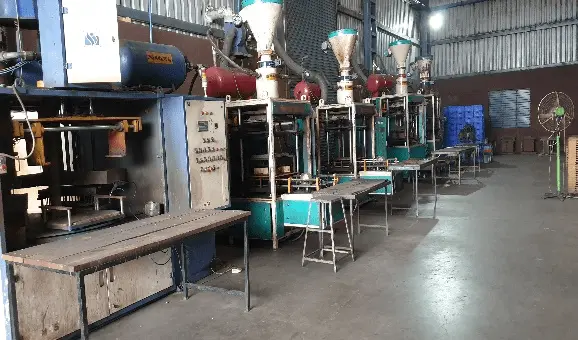

Core Making Facalities

We Have an in House Core Shop With 10 Cold Set Box Core Shooting Machings, Along With Provisions For Air Setting Oil Cores And CO2 Core Making Process.
